Replacement
1.
Remove the plug hole.

2.

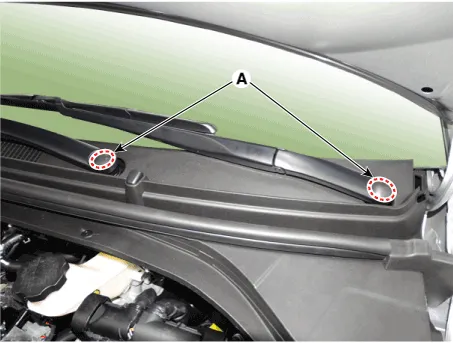

Loosen the mounting nuts and remove the wiper arm (A).
Tightening torque :
22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)

3.

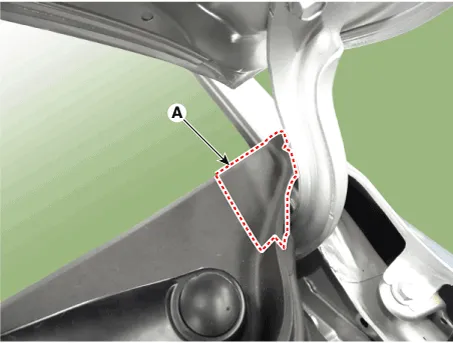

Using a screwdriver or remover, remove the cowl side cover (A).

4.

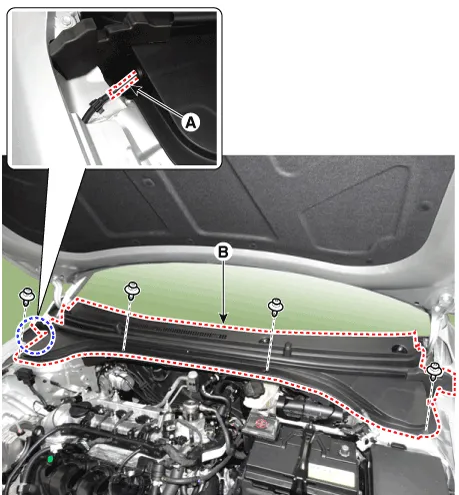

Disconnect the washer nozzle (A).
5.
Detach the clips, then remove the cowl top cover (B).

6.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Cowl top cover
