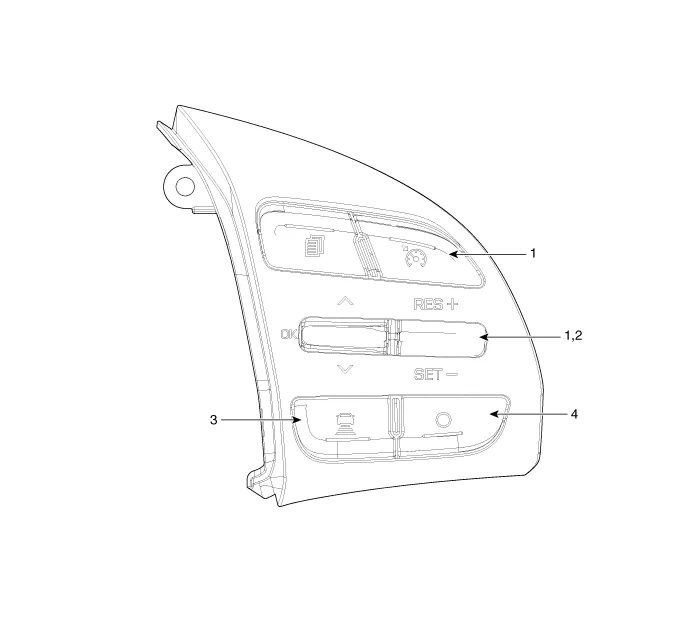

Components

1. SET - switch
2. RES + switch
3. Distance setting switch
4. CANCEL switch
5. CRUISE switch

    Removal1.Remove the front bumper.(Refer to Body - "Front Bumper")2.Disconnect the smart cruise control unit connector (A).3.Remove the smart cruise control nuit assembly (B) from thevehicle after loosening mounting bolts.

    Circuit Diagram[Curise + SCC]
