Hyundai Ioniq (AE): Parking Distance Warning (PDW) / Components and components location

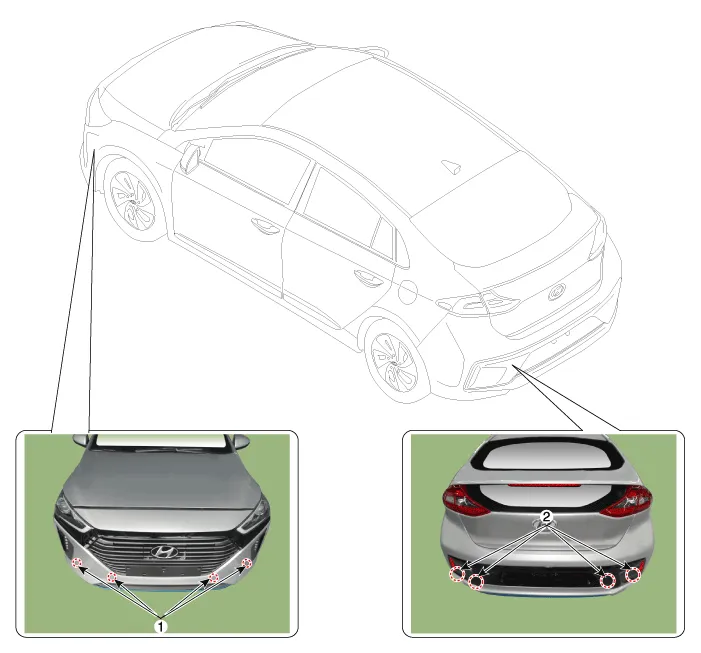

| Component Location |
| 1. BCM (Body Control Module) | 2. Ultrasonic sensor |
|
Specification Item Specification Ultrasonic sensorVoltage ratingDC 12VDetecting range30 - 120cmOperation voltageDC 9 - 16VOperation currentMAX 350mAOperation temperature-30°C to +75°C (22°F to +167°F)Operation frequency48 ± 5KHzNumber of sensors8EA
System OverviewParking Distance Warning (PDW) is an electronic driving aid that warns the driver to be cautious while parking or driving at low speed.
