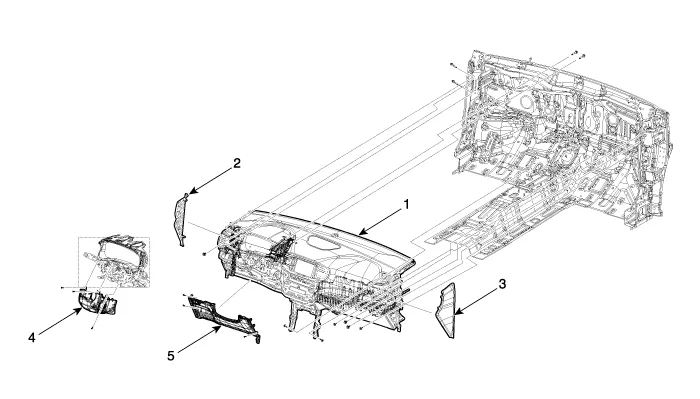

Components

1. Crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]
4. Steering column shroud lower panel
5. Crash pad lower panel

    Component Location 1. Cluster fascia panel
