Hyundai Ioniq (AE): Crash Pad / Cluster Fascia Panel. Components and components location
| Component Location |

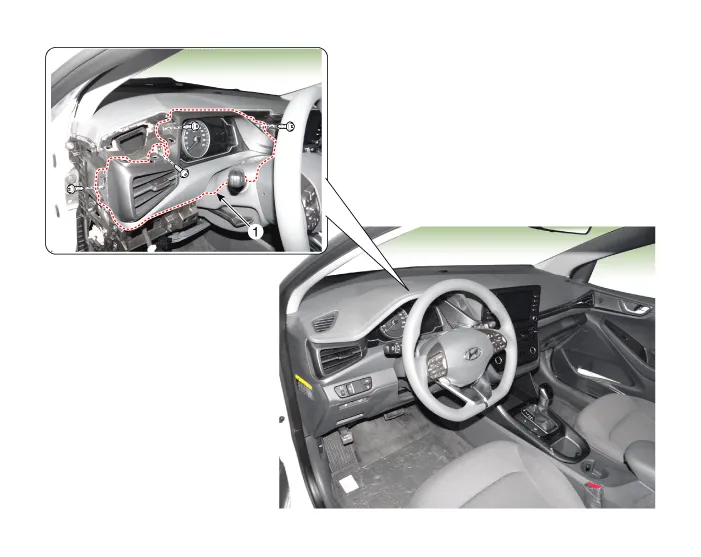

| 1. Cluster fascia panel |
Components1. Crash pad assembly2. Crash pad side cover [LH]3. Crash pad side cover [RH]4. Steering column shroud lower panel5. Crash pad lower panel
Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
