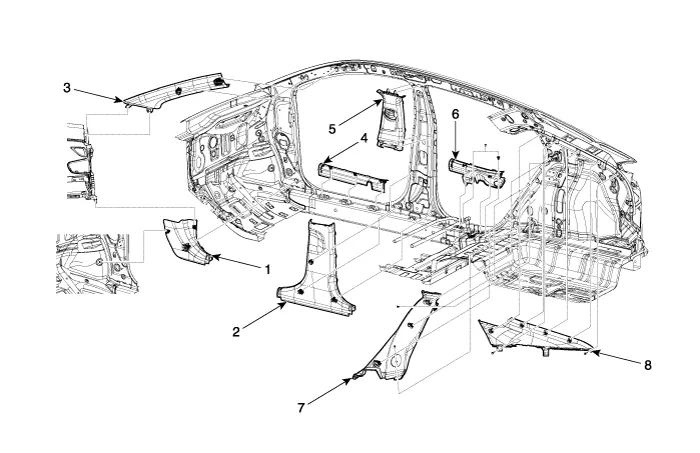

Components

1. Cowl side trim
2. Center pillar lower trim
3. Front pillar trim
4. Front door scuff trim

5. Center pillar upper trim
6. Rear door scuff trim
7. Rear wheel house trim
8. Rear pillar trim

    Component Location 1. Front door scuff trim2. Rear door scuff trim
