Hyundai Ioniq (AE): Front Radar System / Schematic diagrams
| Trouble Symptom Charts |
|

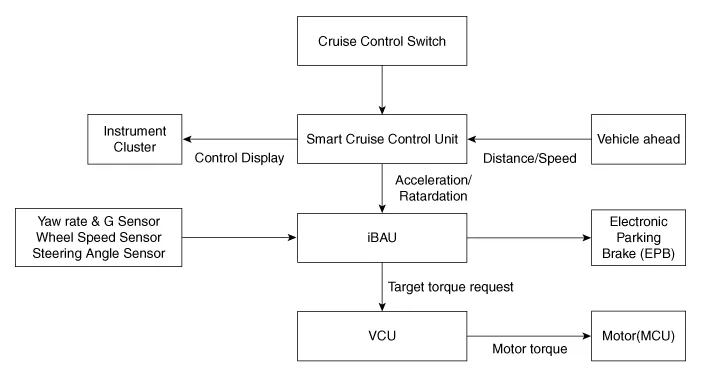

Component part
|
Function
|
| Cruise Control Switch | Input the set speed and distance to the SCC ECU. |
| Instrument Cluster | Display various information inputted from SCC. |
| Smart Cruise Control Unit | Automatic braking and request the motor torque control to the motor (VCU) Request the EPB torque control to the Electronic Parking Brake (EPB) Request the stop lamp indicator ON |
| IBAU | It requests the target torque to the VCU. |
| VCU | The allocation of the target torque, the motor torque. |
| Motor (MCU) | Control the Motor torque. |
General Safety Information and CautionBe careful of the following precautions when driving the vehicle using the smart cruise control system. • The smart cruise control system may have limits in detecting distance to the vehicle ahead due to road and traffic conditions.
DescriptionThe smart cruise control system allows a driver to program the vehicle to control the speed and following distance by detecting the vehicle ahead without depressing the brake pedal and the accelerator pedal.
