Hyundai Ioniq (AE): Keyless Entry And Burglar Alarm / Components and components location

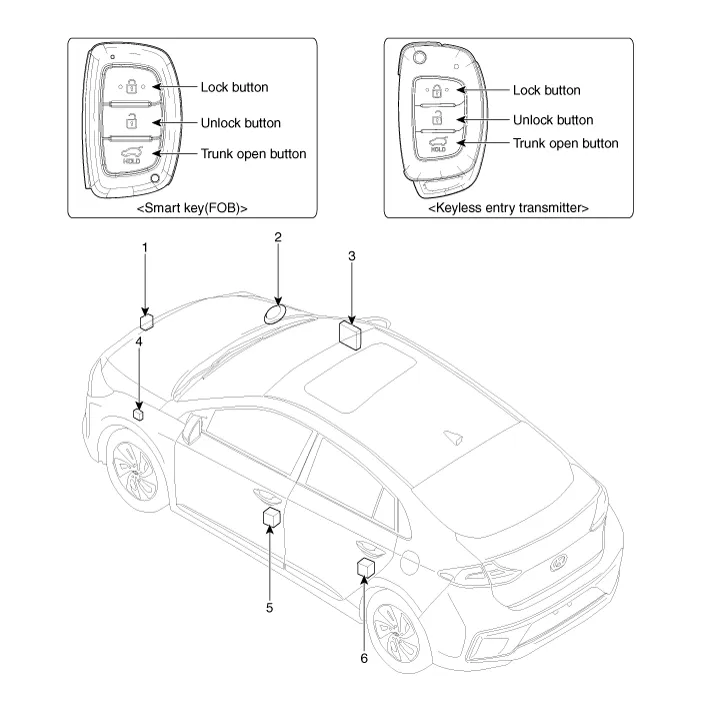

| Component Location |
| 1. Hood switch 2. Burglar horn 3. BCM | 4. Door lock / unlock buzzer 5. Front door switch 6. Rear door switch |
Specification Item Specification Power source3VOperating temperature-30°C to +75°C (-22°F to +167°F)RF ModulationFSKLF ModulationASKRF frequency433.
DescriptionBurglar Alarm State [B/A State] B/A State Description DISARM1) In "DISARM" state, no vehicle start inhibition.
