Hyundai Ioniq (AE): Power Door Locks / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Power Door Locks / Components and components location

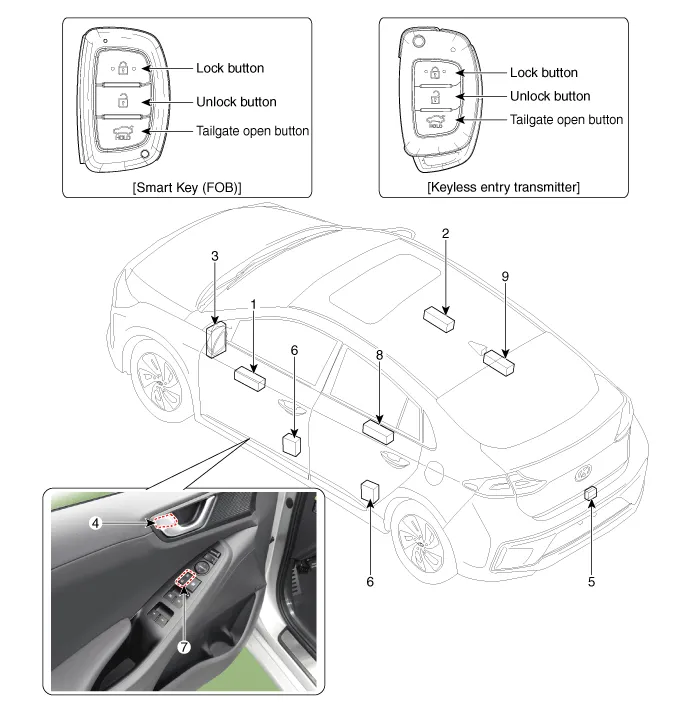

Component Location

1. DDM (Driver Door Module)
2. ADM (Assist Door Module)
3. SJB (Smart Junction Block)
4. Door lock knob
5. Tailgate lid actuator
6. Door latch module
7. Door lock/unlock switch
8. RLDM (Rear Left Door Module)
9. RRDM (Rear Right Door Module)

    Conponents1. Door lock/unlock knob cable2. Door inside handle cable3. Door Latch
