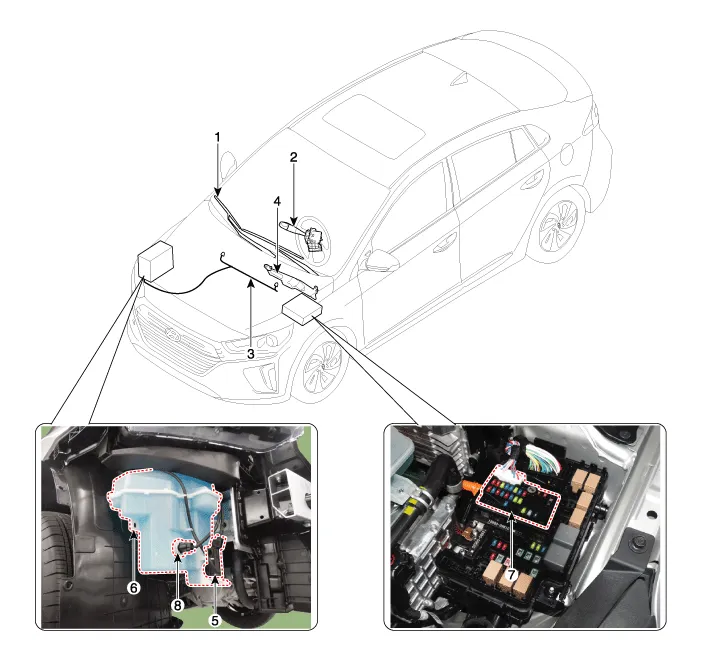

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nolzzle
4. Washer motor & linkage assembly
5. Washer motor
6. Washer reservoir
7. Wiper/Washer relay (Built - in PCB block)
8. Washer fluid level sensor

    Removal1.Disconnect the negative (-) battery terminal.2.If it is necessary to remove multifunction switch assembly, remove the steering wheel.(Steering System - "Steering Wheel")3.
