Hyundai Ioniq (AE): Electric A/C Compressor / Components and components location
| Components Location |

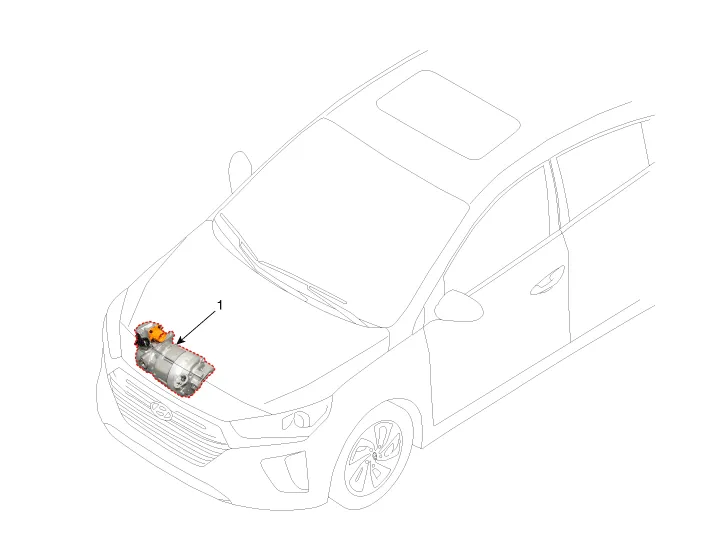

| 1. Electric A/C Compressor |
| Components |

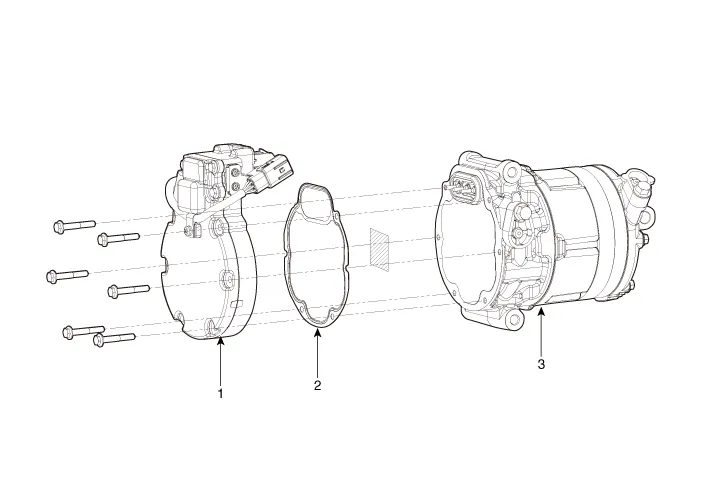

| 1. Electric A/C Compressor inverter assembly 2. Gasket | 3. Electric A/C Compressor body assembly |
DescriptionCompare to the belt-driven A/C compressor, the electric A/C compressor has several advantages. It can contribute to the improvement of EV fuel efficiency and it is possible to running air conditioner after engine stop during EV mode.
Connector ConfigurationsTerminal Function Connector Pin No. Function A112V Power Ground2Climate CAN Low3Interlock (-)412V Power5Climate CAN High6Interlock (+)B1High Voltage Power2High Voltage Ground3Compressor Interlock (-)4Compressor Interlock (+)
