Hyundai Ioniq (AE): Hybrid Control System / Components and components location

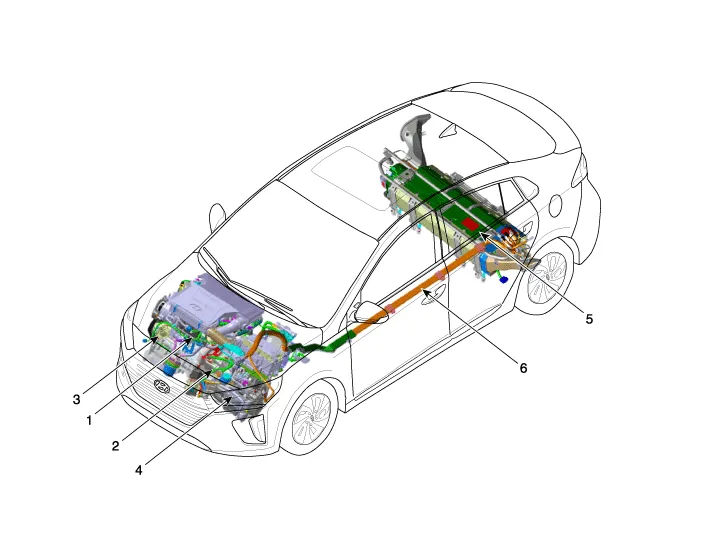

| Components |
| 1. Engine 2. Hybrid Drive Motor 3. HSG (Hybrid Starter Generator) | 4. Transaxle 5. High Voltage Battery System 6. Power Cable |
Personal Protective Equipment Name Illustration Description Insulation gloveUsed when inspecting or working on the high voltage components[Insulation performance : 1000V / 300A or above]Insulation shoesUsed when inspecting or working on the high voltage componentsInsulation clothesInsulation helmetSafety glassesUsed in the case below • During Removal & installation or inspection of the high voltage battery terminals or wiring, which spark might happen.
Basic TroubleshootingBasic Inspection ProcedureMeasuring Condition of Electronic Parts' ResistanceThe measured resistance at high temperature after vehicle running may be high or low.
