Component Location

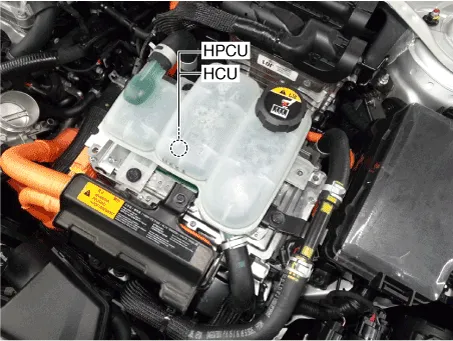

1. HPCU (Hybrid Power Control Unit)
2. HCU (Hybrid Control Unit)

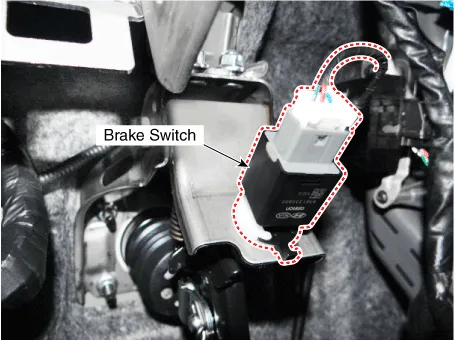

3. Brake Switch

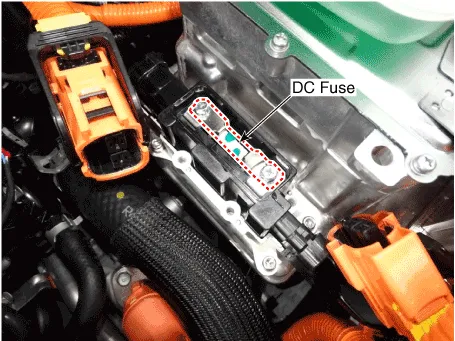

4. DC Fuse


•
HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC / DC Converter).

•
For the location of the other control modules, refer to the relevant group.
1. HPCU (Hybrid Power Control Unit)
2. HCU (Hybrid Control Unit)
3. Brake Switch

4. DC Fuse



    SpecificationsBrake Switchâ–· Type : ON/OFF Switchâ–· Specification Item Brake Pedal Release Brake Pedal Push Switch 1 Max.

    DescriptionThe Hybrid Power Control Unit (HPCU) is an integrated power conversion unit which consists of the two inverters, LDC, and HCU.
