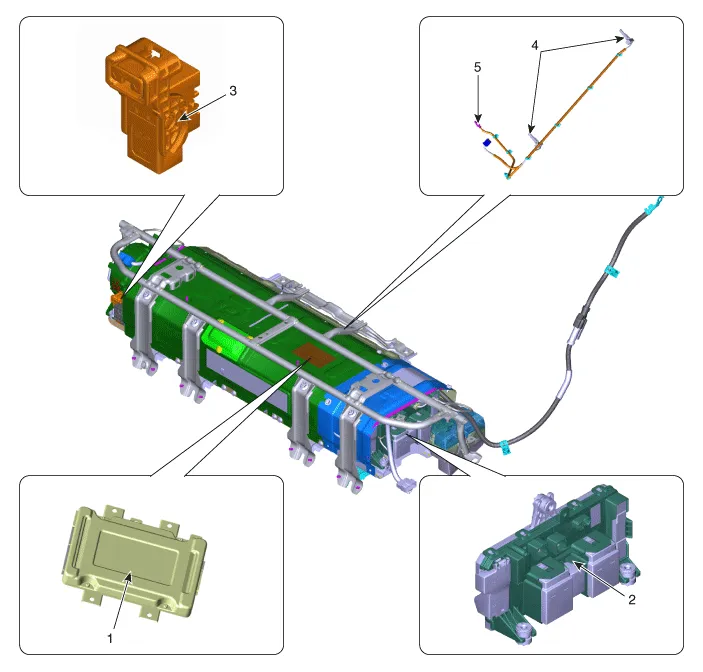

Component Location

1. BMS ECU
2. Power Relay Assembly (PRA)
3. Safety Plug
4. Battery Temperature Sensor
5. Battery Ambient Sensor


•
Main Relays (Positive, Negative), Pre-Charge Relay, Pre-Charge Resistor, and Battery Current Sensor are integrated into the PRA.

    SpecificationSafety Plugâ–· Specification Item Specification Rated Voltage (V) 400 Rated Current (A) 80 Fuse Rated Current (A) 125 Fuse Melting Time Rated Current x 110% Min.

    Troubleshooting Flow
