Hyundai Ioniq (AE): Inhibitor Switch / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / DCT(Dual Clutch Transmission) System / Dual Clutch Transmission Control System / Inhibitor Switch / Components and components location

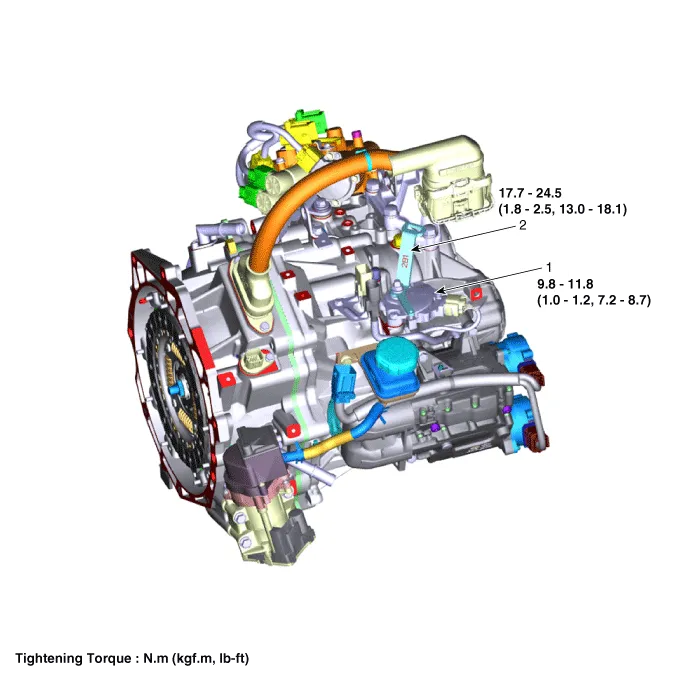

Components

1. Inhibitor switch
2. Manual control lever


    Description• Components location : DCT (Dual Clutch Transmission)• Function - The inhibitor switch mounted on the upper of transaxle and connected with shifter lever.
