Hyundai Ioniq (AE): Front Axle Assembly. Front Hub / Knuckle / Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Driveshaft and axle / Front Axle Assembly. Front Hub / Knuckle / Components and components location

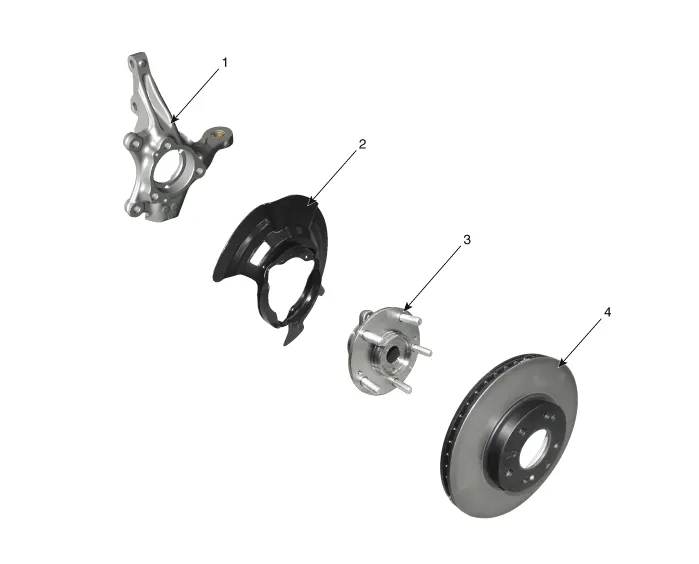

| Components |
| 1. Knuckle 2. Dust cover | 3. Hub bearing 4. Brake disc |
Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub.
