| Removal |
| 1. | Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. |

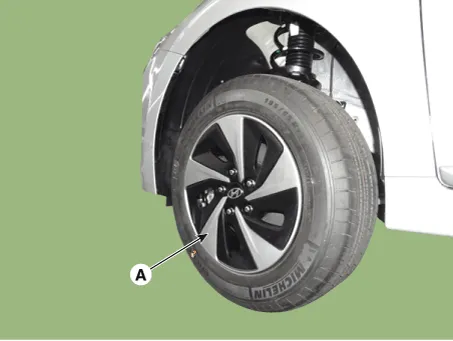

| 2. | Remove the front wheel and tire (A) from the front hub.
|
| 3. | Remove the front brake caliper. (Refer to Brake System - "Front Disc Brake") |

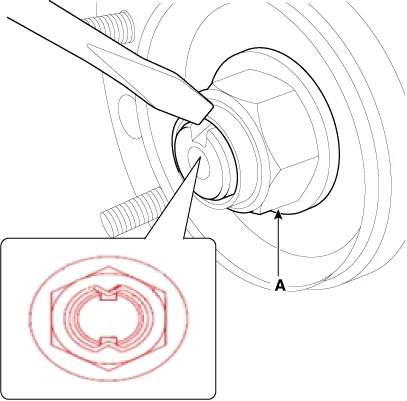

| 4. | Loosen the driveshaft caulking nut (A).
|

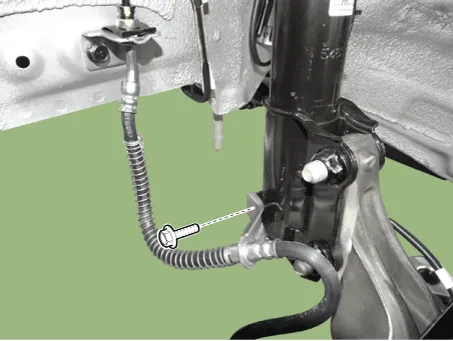

| 5. | Loosen the brake hose mounting bolt and then remove the brake hose bracket.
|

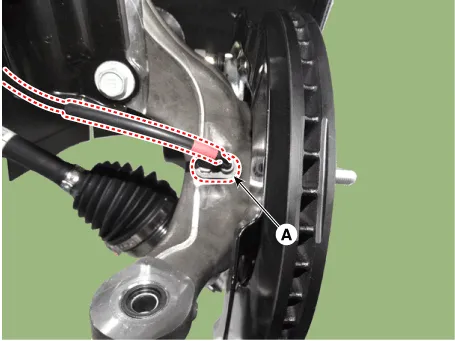

| 6. | Loosen the bolt and then remove the wheel speed sensor (A).
|

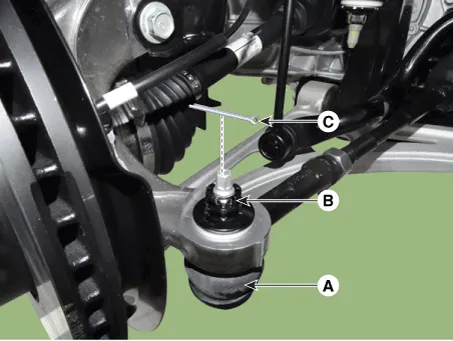

| 7. | Remove the tie rod end ball joint.
|

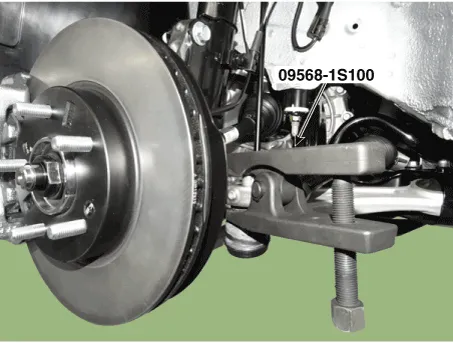

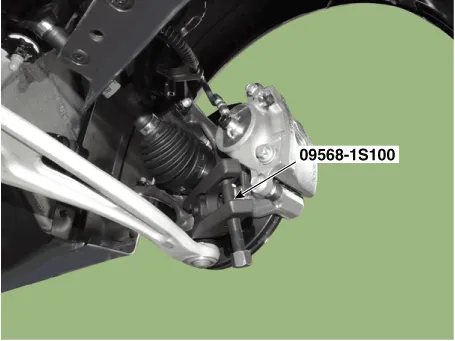

| 8. | Loosen the lower arm nut and then remove the lower arm ball joint by using SST(09568-1S100).
|

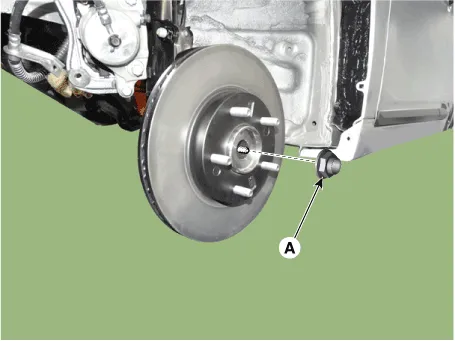

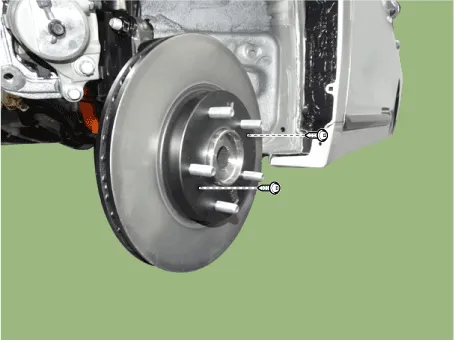

| 9. | Loosen the screw and the remove the front disc.
|

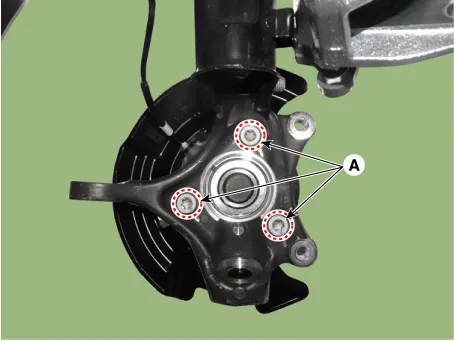

| 10. | Remove the hub bearing by loosening the mounting bolts (A).
|

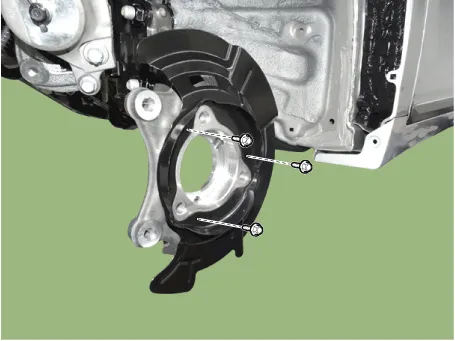

| 11. | Loosen the bolts and then remova the dust cover.
|

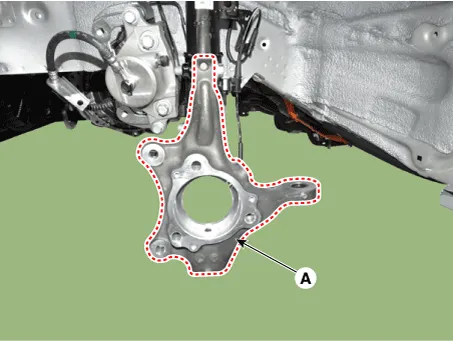

| 12. | Loosen the strut mounting bolts & nuts then remove the knuckle assembly (A).
|
| 13. | To install, reverse the removal procedure |
| 14. | Check the alignment. (Refer to Suspension System - "Alingment") |
| Inspection |
| 1. | Check the hub for cracks and the splines for wear. |
| 2. | Check the brake disc for scoring and damage. |
| 3. | Check the knuckle for cracks. |
| 4. | Check the bearing for cracks or damage. |
