Hyundai Ioniq (AE): Tire Pressure Monitoring System / Components and components location

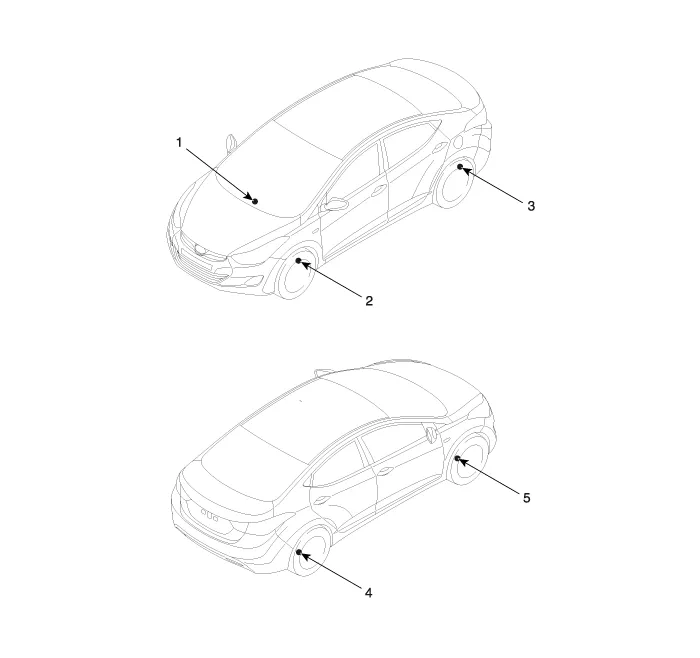

Components

1. Body control module(BCM)
2. TPMS sensor (FL)
3. TPMS sensor (RL)
4. TPMS sensor (FR)
5. TPMS sensor (RR)

    DescriptionTREAD Lamp– Tire Under Inflation / Leak Warning.1.Turn on condition– When tire pressure is below allowed threshold– When rapid leak is detected by the sensor.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Parking Distance Warning (PDW) Sensor. Repair procedures

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the front / rear bumper cover.(Refer to Body - "Front Bumper Cover")(Refer to Body - "Rear Bumper Cover")3.Disconnect the connector (A) from the parking assist sensor.4.Remove the sensor (A) by pulling out both ends of the sensor holder.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Cruise Control Switch. Repair procedures

    Removal1.Disconnect the negative (-) battery terminal.2.Remove the steering wheel assembly.(Refer to Steering System - "Steering Wheel")3.Remove the steering back cover (A).4.Remove the steering remote control connector (A).5.Remove the steering remote control after loosening the screws.
