Hyundai Ioniq (AE): Wireless Power Charger System / Components and positions
| Components |

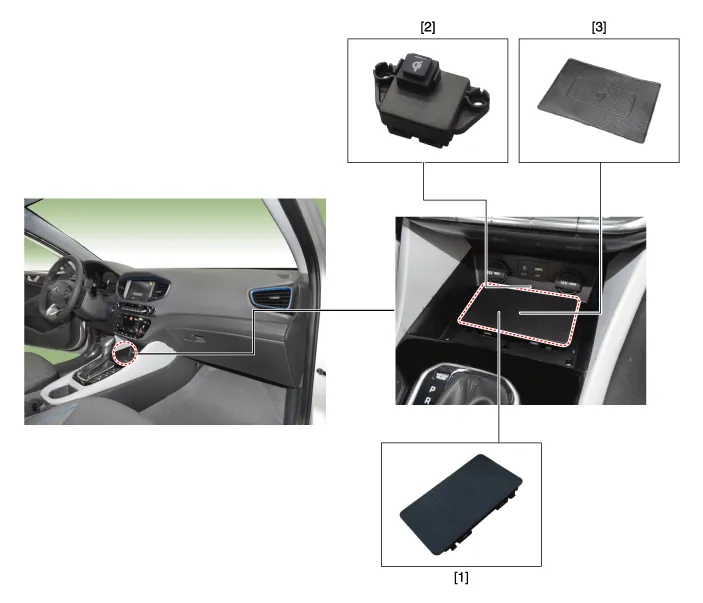

| 1. Wireless power charging unit 2. Wireless charging lamp | 3. Wireless charging pad |
Specifications Item Specification Rated voltageDC 13.5 VOperating voltageDC 7.5 - 16.0 VOperating temperature-86 to 167°F (-30 to 75°C)Dark currentMax.
Description and OperationWireless Power Charger SystemDuring ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone.
