Hyundai Ioniq (AE): Engine Control System / CVVT Oil Control Valve (OCV). Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / CVVT Oil Control Valve (OCV). Repair procedures

Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the OCV connector.
3.
Measure resistance between the OCV terminals 1 and 2.
4.
Check that the resistance is within the specification.
Specification : Refer to "Specification"
Removal
[CVVT Oil Control Solenoid (Intake)]
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.

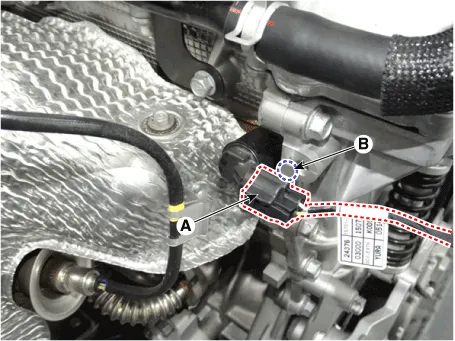

Disconnect the CVVT oil control solenoid (A).
3.
Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the enigne.

[CVVT Oil Control Valve (Exhaust)]
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Remove the air cleaner assembly
(Refer to Engine Mechanical System - "Air Cleaner")
3.

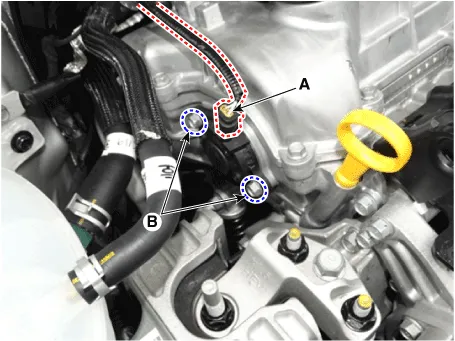

Disconnect the CVVT oil control solenoid (A).
4.
Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the enigne.

Installation

•
Install the component with the specified torques.
•
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

•
Apply engine oil to the valve O-ring.
1.
Install in the reverse order of removal.
CVVT Oil control valve installation bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    Circuit Diagram
