Hyundai Ioniq (AE): Engine Control System / CVVT Oil Control Valve (OCV). Schematic diagrams

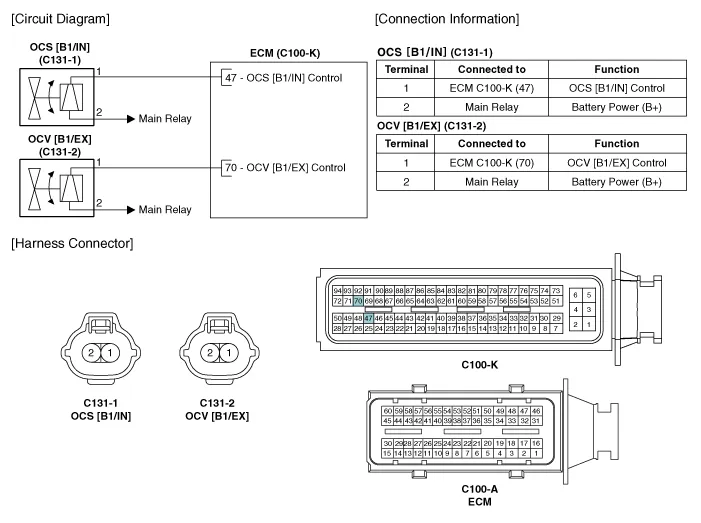

| Circuit Diagram |
SpecificationCVVT Oil Control Solenoid (OCS) [Intake]▷ Specification Item Specification Coil Resistance (Ω) 5.
Inspection1.Turn the ignition switch OFF.2.Disconnect the OCV connector.3.Measure resistance between the OCV terminals 1 and 2.4.Check that the resistance is within the specification.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: In-car Sensor. Description and operation
DescriptionThe In-car air temperature sensor is built in the heater & A/C control unit.The sensor contains a thermistor which measures the temperature of the inside. The signal decided by the resistance value which changes in accordance with perceived inside temperature, is delivered to heater control unit and according to this signal the contr
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Auto Defoging Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF. 2.Disconnect the auto defogging connector. 3.Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
