Hyundai Ioniq (AE): Body Side Molding / Delta Garnish. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Body Side Molding / Delta Garnish. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

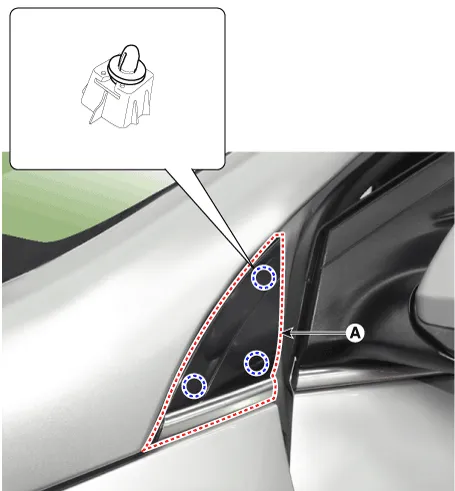

Using a screwdriver or remover, remove the delta garnish (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
