Description

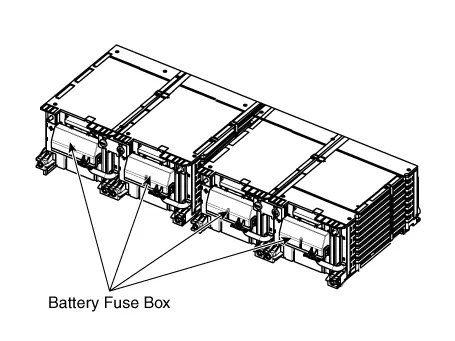

Battery fuse box is located on the side of the high voltage battery pack. It prevents cells from being damaged by external factors, such as short or overcurrent.

    Specification Item Specification Rated Voltage (V)63 (DC) Rated Current (A)2 (DC)
