Hyundai Ioniq (AE): Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and components location

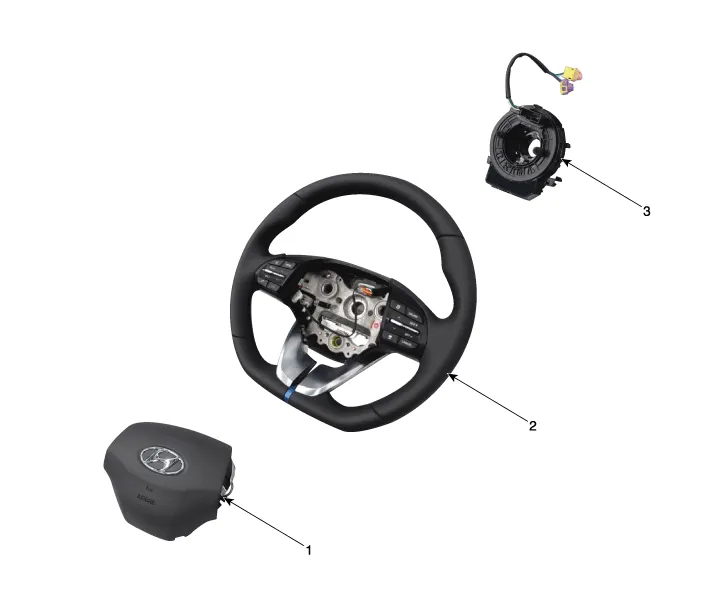

Components

1. Driver Air Bag (DAB)
2. Steering Wheel

3. Clock Spring

❮Driver Airbag (DAB) Module and Clock Spring. Description and operation

Description• Driver Air Bag (DAB)DAB is installed in the steering wheel, and electrically connected to the SRSCM via clock spring.

Driver Airbag (DAB) Module and Clock Spring. Repair procedures❯

Removal1.Disconnect the battery negative cable and wait for at least three minutes before beginning work.2.Remove the driver airbag module by putting in a flat tool (Ø5mm) into the guide hole and then press the spring.
