Hyundai Ioniq (AE): Clutch System / Engine Clutch Actuator. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Clutch System / Clutch System / Engine Clutch Actuator. Components and components location

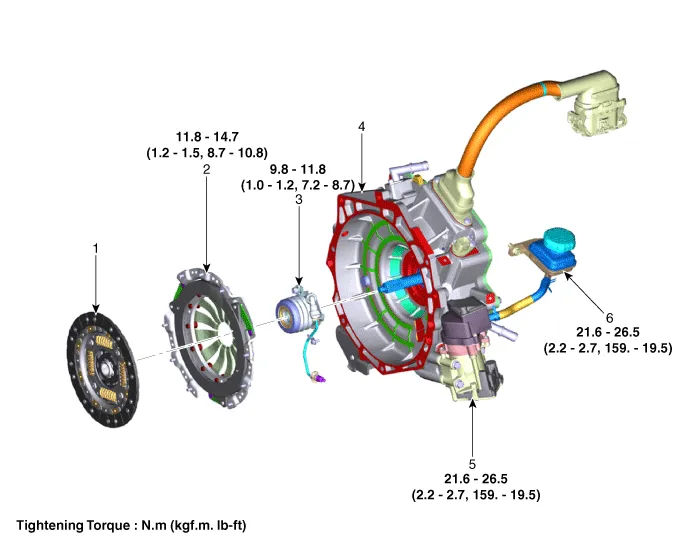

Components

1. Clutch disc
2. Clutch cover
3. Concentric slave cylinder
4. Hybrid motor assembly
5. Engine clutch actuator
6. Reservoir

    Specifications Items Specifications Operation methodBLDC MotorInput voltage (V)12Max power (W)480Operating temperature (°C)- 30 to 105 °CResistance (Ω)120Max pressure43 bar
