Hyundai Ioniq (AE): Engine Control System / Engine Coolant Temperature Sensor (ECTS). Schematic diagrams

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / Engine Coolant Temperature Sensor (ECTS). Schematic diagrams

Circuit Diagram

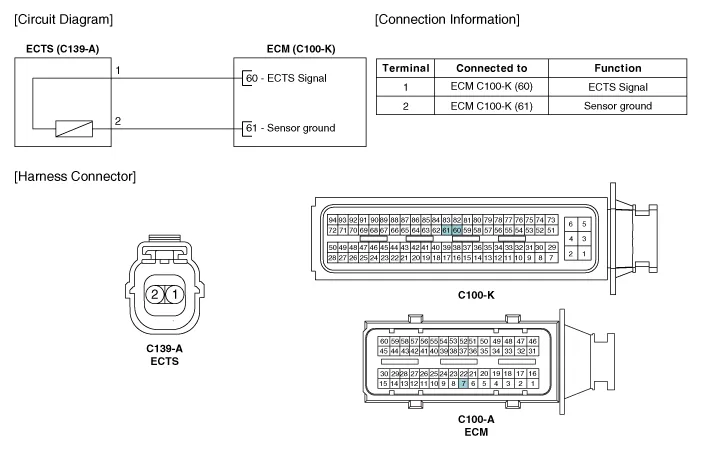

[Water Temperature Control Assembly]

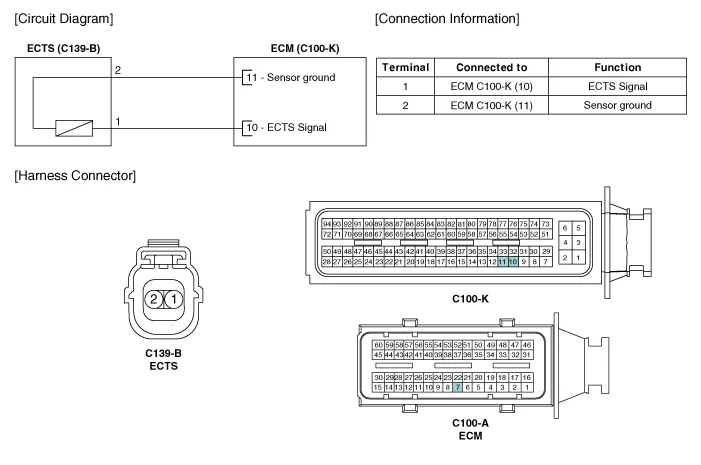

[EGR Cooler Tube]

❮Engine Coolant Temperature Sensor (ECTS). Specifications

Specification Temperature Resistance (kΩ) °C °F -40-4048.

Engine Coolant Temperature Sensor (ECTS). Repair procedures❯

Inspection1.Turn the ignition switch OFF.2.Remove the ECTS.(Refer to "Removal")3.After immersing the thermistor of the sensor into engine coolant, measure resistance between the ECTS terminals 1 and 3.
