Hyundai Ioniq (AE): Front Door / Front Door Module. Components and components location

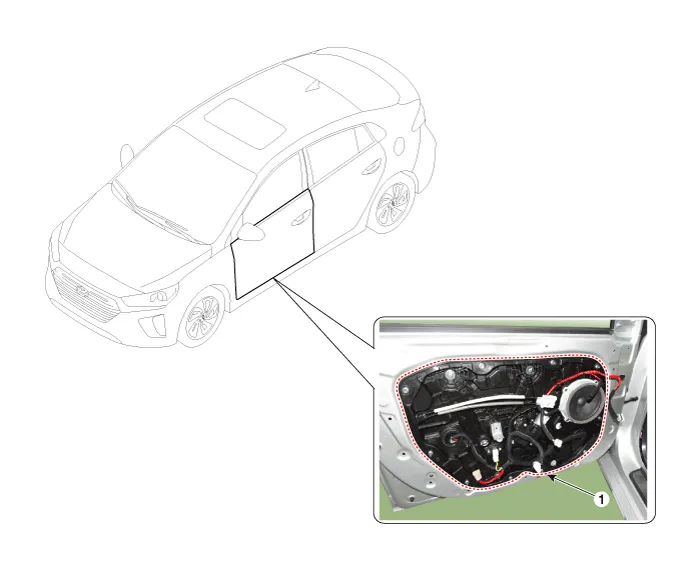

| Component Location |
| 1. Front door module |
Replacement1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")2.Remove the front door belt inside weatherstrip (A).3.Separate the mounting plug hole (A) from the front door module.
Replacement1.Remove the front door window glass.(Refer to Front Door - "Front Door Window Glass")2.Remove the front door outside handle.(Refer to Front Door - "Front Door Outside Module")3.
