Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Window Glass. Components and components location

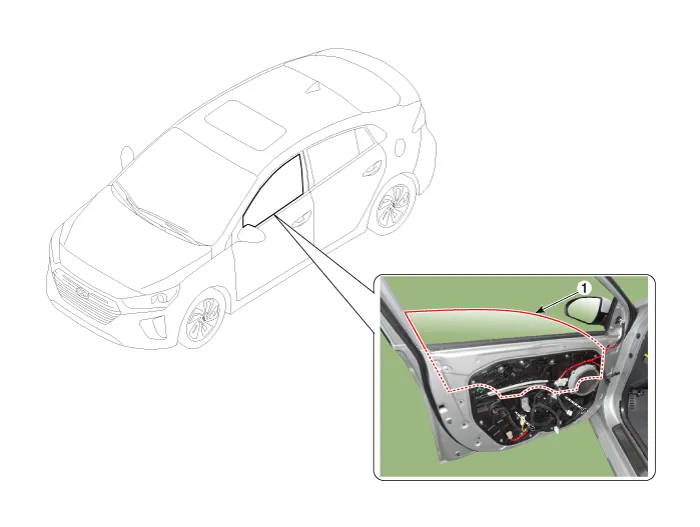

Component Location

1. Front door window glass

❮Front Door Inside Handle. Repair procedures

Replacement1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")2.After loosening the mounting screws, remove the front door inside handle (A).

Front Door Window Glass. Repair procedures❯

Replacement1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")2.Remove the front door belt inside weatherstrip (A).3.Separate the mounting plug hole (A) from the front door module.
