Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

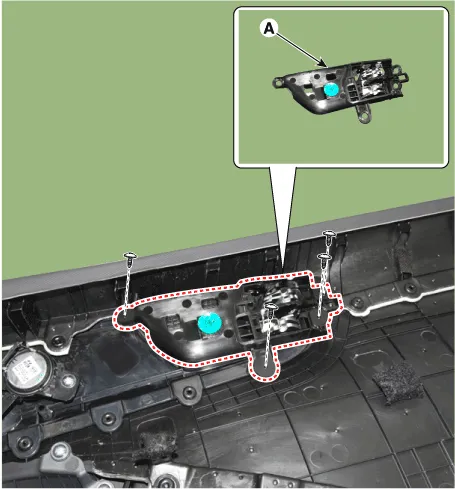

After loosening the mounting screws, remove the front door inside handle (A).

3.
To install, reverse the removal procedure.

•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
