Hyundai Ioniq (AE): Interior Trim / Front Pillar Trim. Components and components location

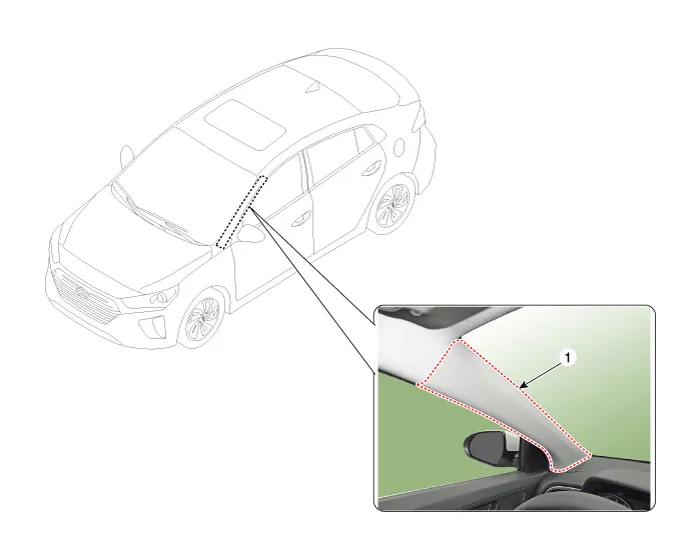

| Component Location |
| 1. Front pillar trim |
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
