Hyundai Ioniq (AE): Front Radar System / Front Radar Unit. Schematic diagrams

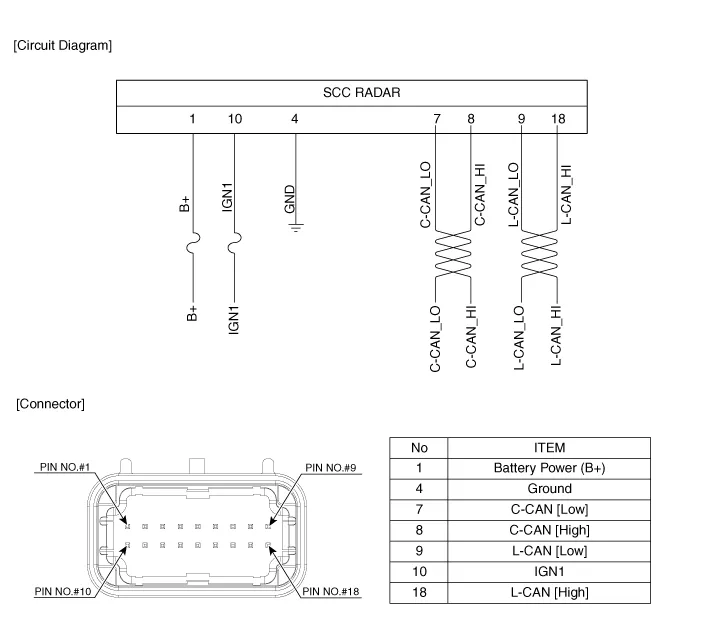

| Circuit Diagram |
Specification Item Specification Power supply (V)12Operation voltage (V)9 - 16
Removal1.Remove the front bumper.(Refer to Body - "Front Bumper")2.Disconnect the smart cruise control unit connector (A).3.Remove the smart cruise control nuit assembly (B) from thevehicle after loosening mounting bolts.
