Replacement
1.
Open the cover and loosen the front seat mounting bolts.

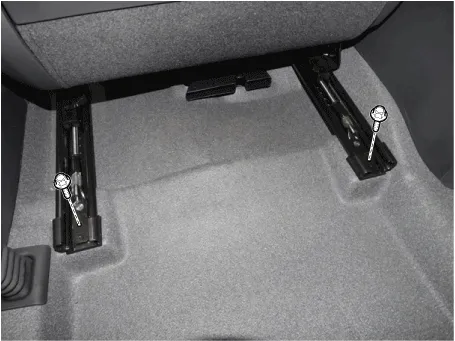

[Front]
Tightening torque :
49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

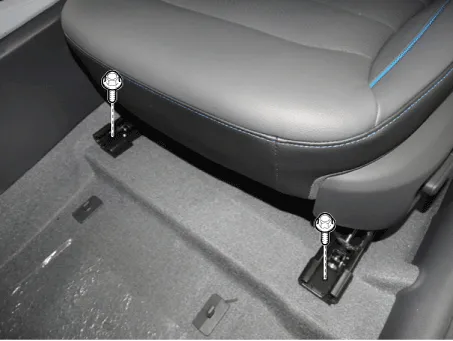

[Rear]

2.

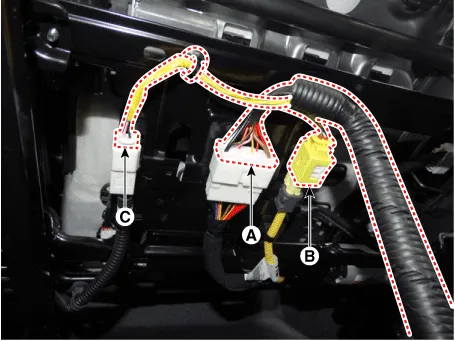

Disconnect the main connector (A), front seat belt buckle connector (C), airbag connector (B).

3.
To install, reverse the removal procedure.

The installation procedures of seat mounting bolts
•
Push the seat to the rear end of slides and initially tighten the front mounting bolts.
•
Push the seat to the front end of slides and completely tighten the rear mounting bolts.
•
Send the seat to the rear end again to completely tighten the front mounting bolts.
•
Check the seat for smooth movement.
•
For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
