Hyundai Ioniq (AE): Front Seat Belt / Front Seat Belt Buckle. Components and components location

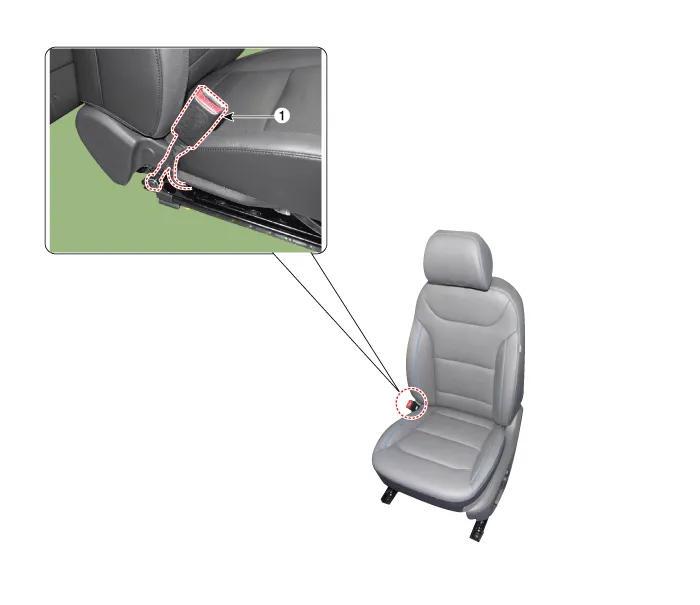

| Component Location |
| 1. Front seat belt buckle |
Replacement1.Remove the front seat belt upper anchor.(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")2.After loosening the mounting bolts, remove the height adjust (A).
