Hyundai Ioniq (AE): Fuel Delivery System / Fuel Pressure Sensor (FPS). Schematic diagrams

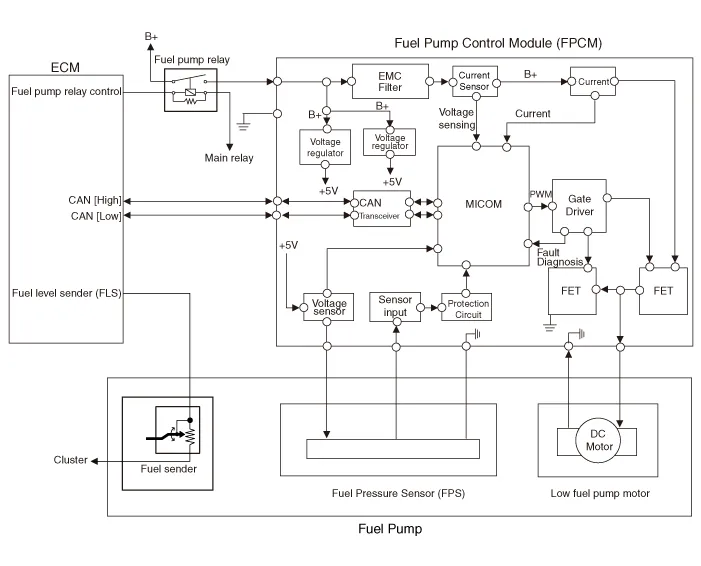

| Circuit Diagram |
| Circuit Diagram |

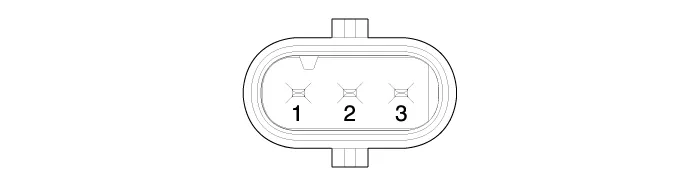

| Terminal Function |
|
Pin No
|
Discription
|
Connected to
|
| 1 | Fuel pressure sensor (FPS) Power supply (+5V) | Fuel Pressure Sensor (FPS) |
| 2 | Fuel pressure sensor (FPS) signal input | Fuel Pressure Sensor (FPS) |
| 3 | Fuel pressure sensor (FPS) ground (-) | Fuel Pressure Sensor (FPS) |
Specification Pressure [KPa (kgf/cm², psi)] Output Voltage (V) 50 (0.
Removal1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.2.Remove the rear seat cushion. (Refer to Body - "Rear Seat Assembly")3.
