Hyundai Ioniq (AE): Hybrid Control System / HPCU (Hybrid Power Control Unit). Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Hybrid Control System / Hybrid Control System / HPCU (Hybrid Power Control Unit). Components and components location

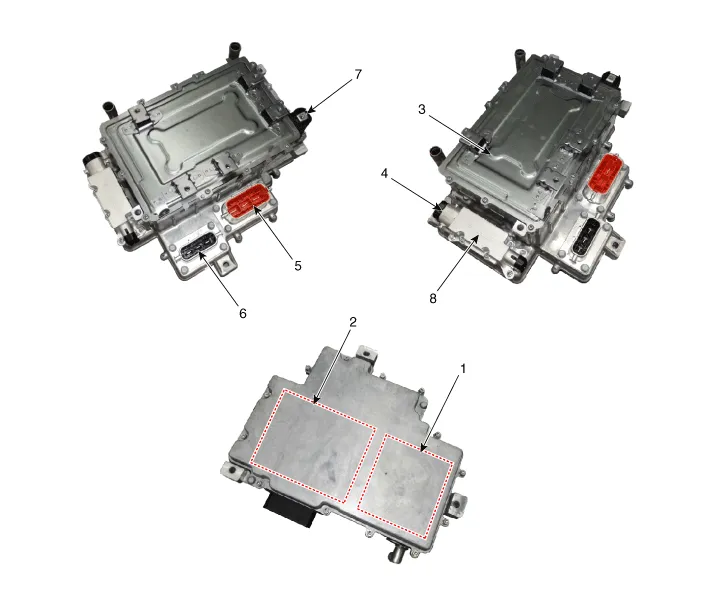

Components

1. Hybrid Control Unit (HCU)
2. Inverter
3. Low DC/DC Converter (LDC)
4. Connector (↔ High Voltage Battery)
5. Connector (↔ Motor)
6. Connector (↔ HSG)
7. Low Voltage Power Outlet Terminal
8. DC Fuse

    DescriptionThe Hybrid Power Control Unit (HPCU) is an integrated power conversion unit which consists of the two inverters, LDC, and HCU.

    Removal    â€¢ Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system.
