Hyundai Ioniq (AE): Hybrid Motor Assembly / Hybrid Starter Generator(HSG). Components and components location
| Component location |

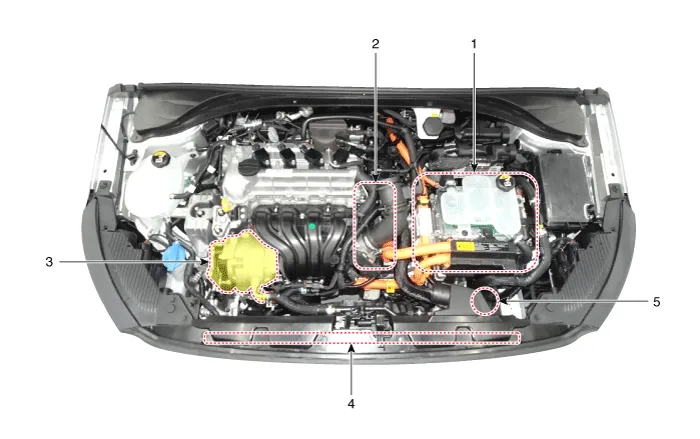

| 1. HPCU (Hybrid Power Control Unit) (LDC+MCU+HCU+Reservoir) 2. Hybrid drive motor | 3. Hybrid starter generator (HSG) 4. Electrical radiator 5. Electric water pump (EWP) |
Inspection1.Use the mΩ tester to check the line resistance. Category Inspection area Inspection criteria Remarks Resistance(Line- Line)U - V35.
Specifications Classification Unit Specifications VoltageVdc204DrivingTorqueNm / rpm / sec35.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: A/C Pressure Transducer. Description and operation
DescriptionThe A/C Pressure Transducer (APT) converts the pressure value of high pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the cooling fan by operating it high speed or low speed. Engine ECU stops the operation of the compressor when the temperature of refrigerant line is very high or very
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Blower Unit. Repair procedures
Replacement When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.1.Disconnect the negative (-) battery terminal.2.Recover the refrigerant with a recovery / recycling / charging station.
