Instrument panel illumination

Hyundai Ioniq. Instrument Cluster Control

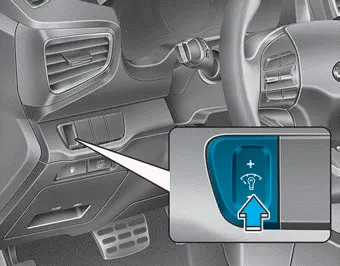

When the vehicle's position lights or headlights are on, press the illumination control button to adjust the brightness of the instrument panel illumination.

When pressing the illumination control button, the interior switch illumination intensity is also adjusted.

WARNING

Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or property damage.

Hyundai Ioniq. Instrument Cluster Control

  • The brightness of the instrument panel illumination is displayed.
  • If the brightness reaches to the maximum or minimum level, a chime will sound.

    ■ Hybrid vehicle • Type A ■ Hybrid vehicle • Type B 1. Power gauge 2. Speedometer 3. Battery SOC (State of Charge) gauge 4. Fuel gauge 5.Warning and indicator lights 6.
