Hyundai Ioniq (AE): Engine Control System / Mass Air Flow Sensor (MAFS). Description and operation

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / Mass Air Flow Sensor (MAFS). Description and operation

Description

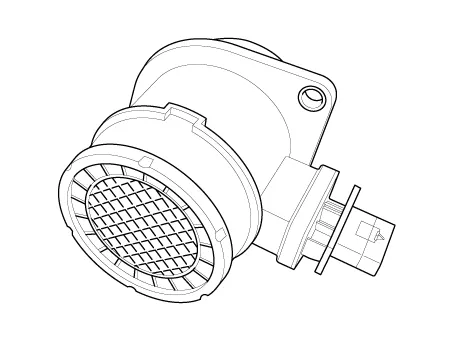

MAFS uses a hot-film type sensing element to measure the mass of intake air entering the engine, and send the signal to ECM.
A large amount of intake air represents acceleration or high load conditions while a small amount of intake air represents deceleration or idle.
The ECM uses this information to control the EGR solenoid valve and correct the fuel amount.

    Inspection1.Connect the GDS on the Data Link Connector (DLC).2.Measure the output voltage of the MAPS at idle and IG ON. Specification : Refer to "Specification"Removal 1.

    Specifications Air Flow (kg/h) Frequency (kHz) -401.49-201.59-101.68-81.7-61.7201.8161.9381.
