Hyundai Ioniq (AE): Engine Control System / Mass Air Flow Sensor (MAFS). Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Control/Fuel System / Engine Control System / Mass Air Flow Sensor (MAFS). Repair procedures

Inspection
1.
Check the MAFS visually.
–
Mounting direction correct.
–
Any contamination, corrosion or damage on connector.
–
Air cleaner's clogging or wet.
–
MAFS cylinder's deforming or blocking by any foreign material.
2.
Check any leakage on intake system and intercooler system.
Removal
1.
Turn the ignition switch OFF and disconnect the battery (-) cable.
2.

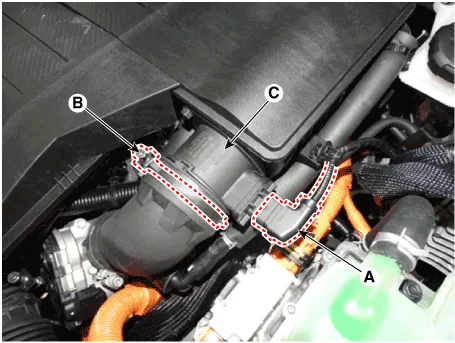

Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
3.
Remove the mass air flow sensor (C).

Installation

•
Install the component with the specified torques.
•
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

•
Be careful not to damage the sensing element and the honey cell.
1.
Install in the reverse order of removal.
Mass air flow sensor installation bolt :
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Mass air flow sensor clamp installation bolt :
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
