Hyundai Ioniq (AE): Engine Control System / Mass Air Flow Sensor (MAFS). Schematic diagrams

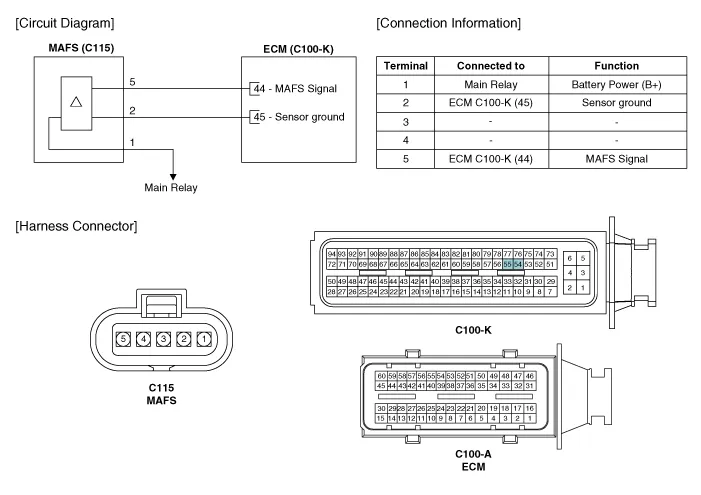

| Circuit Diagram |
Specifications Air Flow (kg/h) Frequency (kHz) -401.49-201.59-101.68-81.7-61.7201.8161.9381.
Inspection1.Check the MAFS visually.– Mounting direction correct. – Any contamination, corrosion or damage on connector.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Smart Cruise Control (SCC) Switch. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the steering wheel assembly.(Refer to Steering System -"Steering Wheel")3.Remove the steering back cover (A).4.Remove the steering remote control connector (A).5.Remove the steering remote control (A), after loosening the screws.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the tailgate lid trim.(Refer to Body - "TailGate Lid Trim")3.Disconnect the Rear view camera connector (A).4.Remove the Rear view camera assembly after loosening the mounting screws.Installation1.
