Hyundai Ioniq (AE): Storage Compartment / Multi Box

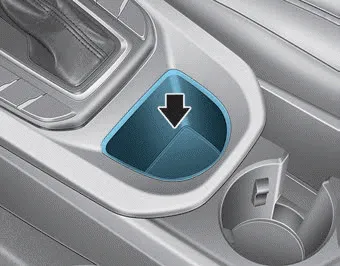

Use the multi box to keep small objects.
WARNING
Do not keep objects that can be thrown from the multi box and severely injure passengers in the vehicle in the event of a sudden stop or an accident.
To open: Push and release the cover and the holder will slowly open. Place your sunglasses in the compartment door with the lenses facing out. To close: Push back into position.
Cup Holder â– Front â– Rear Cups or small beverages cups may be placed in the cup holders. Rear (if equipped) Pull the armrest down to use the cup holders.
