Cup Holder

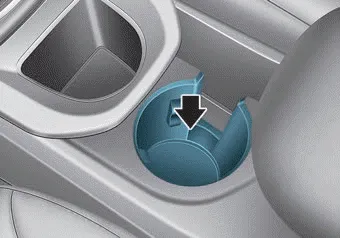

â– Front

â– Rear
Cups or small beverages cups may be placed in the cup holders.

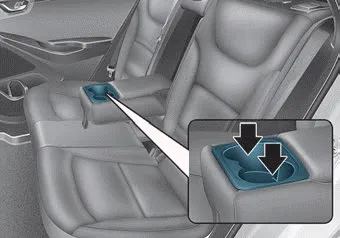

Rear (if equipped)
Pull the armrest down to use the cup holders.
WARNING
WARNING
Keep cans or bottles out of direct sun light and do not put them in a hot vehicle. It may explode.
NOTICE
Use the multi box to keep small objects. WARNING Do not keep objects that can be thrown from the multi box and severely injure passengers in the vehicle in the event of a sudden stop or an accident.
To use a sunvisor, pull it downward. To use a sunvisor for a side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
Removal1.Disconnect the negative (-) battery terminal.2.Remove the steering wheel assembly.(Refer to Steering System -"Steering Wheel")3.Remove the steering back cover (A).4.Remove the steering remote control connector (A).5.Remove the steering remote control (A), after loosening the screws.
