Hyundai Ioniq (AE): Interior Features / Sunvisor

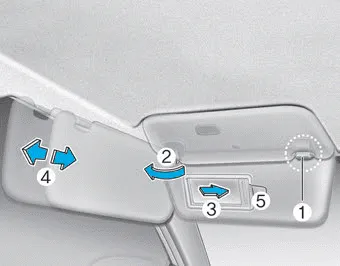

To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward (4) as needed (if equipped). Use the ticket holder (5) to hold tickets (if equipped).
NOTICE
Close the vanity mirror cover securely and return the sunvisor to its original position after use.
WARNING
For your safety, do not block your view when using the sunvisor.
NOTICE
Do not put several tickets in the ticket holder at one time. This could cause damage to the ticket holder.
Cup Holder â– Front â– Rear Cups or small beverages cups may be placed in the cup holders. Rear (if equipped) Pull the armrest down to use the cup holders.
The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems. The devices should draw less than 180 W (Watts) with the vehicle in the ready () mode.
