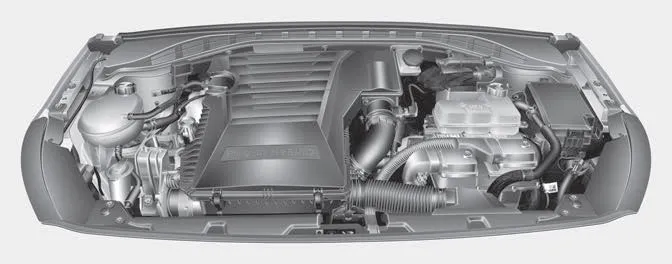

Hyundai Ioniq (AE): Your vehicle at a glance / Plug-in Hybrid Vehicle Engine Compartment
1. Engine oil filler cap
2. Engine oil dipstick
3. Engine coolant cap
4. Engine coolant reservoir
5. Inverter coolant reservoir
6. Brake fluid reservoir
7. Air cleaner
8. Windshield washer fluid reservoir
9. Fuse box
