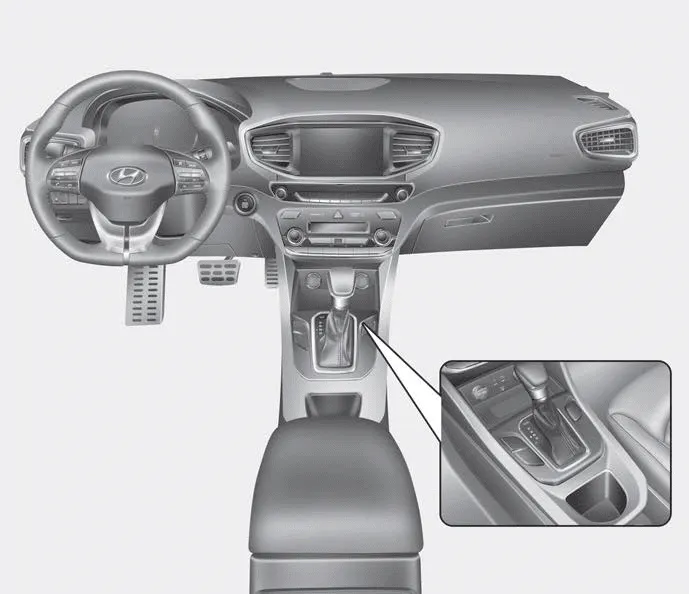

Hyundai Ioniq (AE): Your vehicle at a glance / Plug-in Hybrid Vehicle Instrument Panel Overview
1. Steering wheel audio controls/Bluetooth® wireless technology hands-free controls
2. Instrument cluster
3. Horn
4. Driver’s front air bag
5. Cruise controls/Smart cruise controls
6. Engine Start/Stop button
7. Light control/Turn signals
8. Wiper/Washer
9. Dual clutch transmission
10. Hazard warning flasher button
11. Climate control system
12. Seat warmer
13. EV/HEV button
14. Wireless cellular phone charging system
15. Passenger’s front air bag
16. Glove box
17. Power outlet
18. AUX, USB and iPod® port
1. Door lock/unlock button 2. Driver position memory system 3. Side view mirror control switch 4. Central door lock switch 5. Power window switches 6.
1. Engine oil filler cap 2. Engine oil dipstick 3. Engine coolant cap 4. Engine coolant reservoir 5. Inverter coolant reservoir 6. Brake fluid reservoir 7.
