Hyundai Ioniq (AE): Power Door Mirrors / Power Door Mirror Assembly. Components and components location

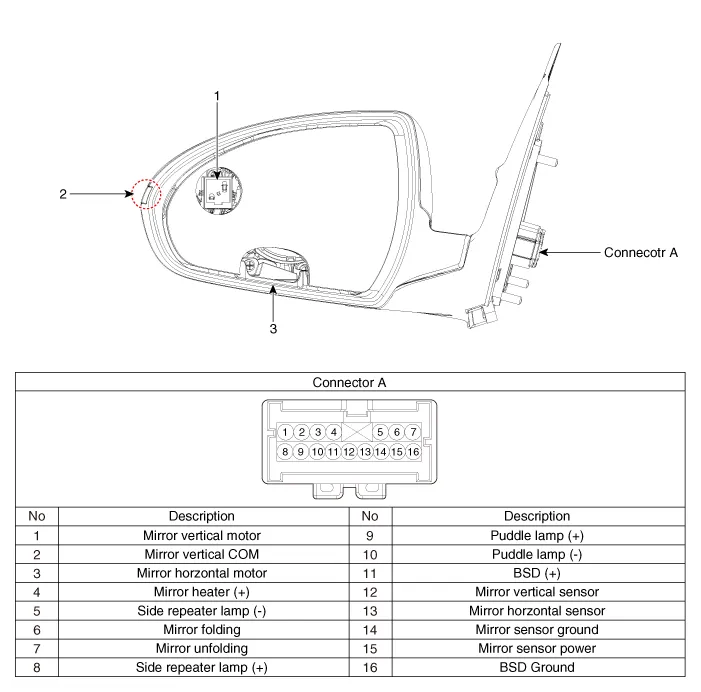

| Components |
| 1. BSD Indicator 2. Side repeater lamp | 3. Puddle lamp |
Removal1.Disconnect (-) battery terminal.2.Using a fastener remover (C), remove the mirror (A) as illustration below. • Protect mirror from removing tool with cloth (B) wrapped.
Inspection1.Disconnect the negative (-) battery terminal.2.Remove the front door quadrant inner cover (A).3.Disconnect the power door mirror connector from the harness.
