Hyundai Ioniq (AE): Power Door Mirrors / Power Door Mirror Switch. Schematic diagrams

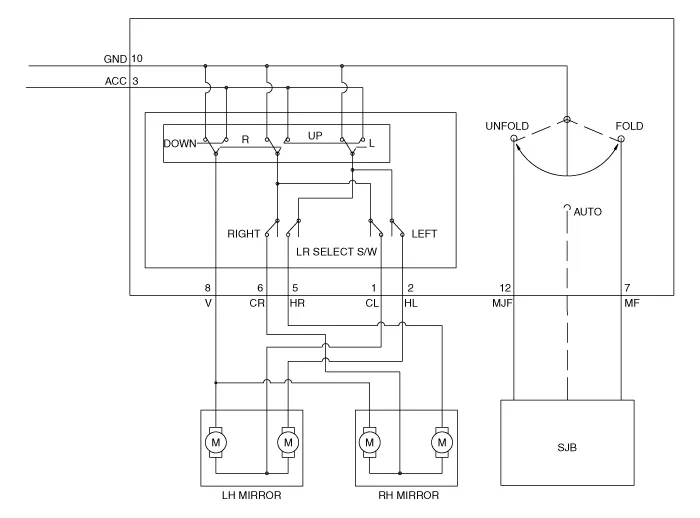

| Circuit Diagram |
Inspection[Power Window Switch]1.Disconnect the negative (-) battery terminal.2.Remove the driver door trim.(Refer to Body - "Front Door Trim")3.Disconnect the power mirror switch connector from the door trim.
