Hyundai Ioniq (AE): Power Door Mirrors / Power Door Mirror Switch. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch. Components and components location

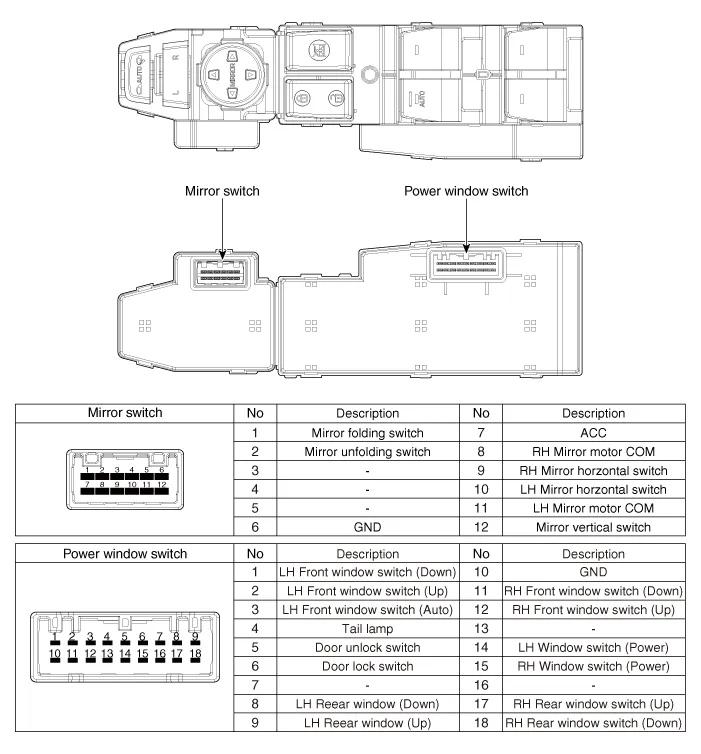

Components

    Component Location1. Power door mirror2. Power door mirror switch3. Power folding mirror switch

    Circuit Diagram
