Hyundai Ioniq (AE): Power Windows / Power Window Switch. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Power Windows / Power Window Switch. Repair procedures

Inspection
[Driver Power Window Switch]
1.
Disconnect the negative (-) battery terminal.
2.
Remove the driver door trim.
(Refer to Body - "Front Door Trim")
3.
Disconnect the power mirror switch connector from the door trim.

4.
Check for continuity between the terminals in each switch position as shown below.

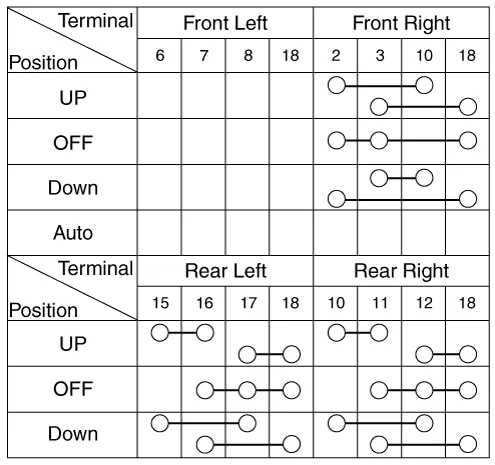

[Driver Auto Down Power Window Switch]

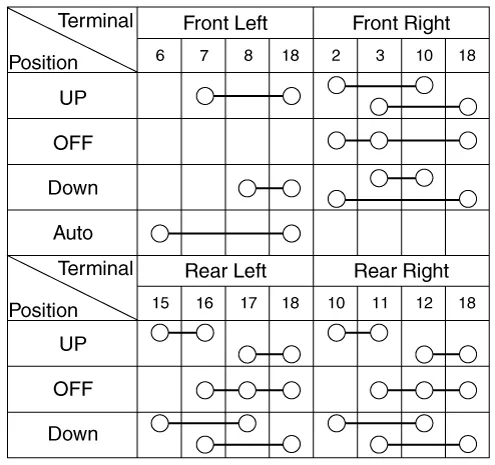

[Driver Safety Power Window (Driver Auto)]

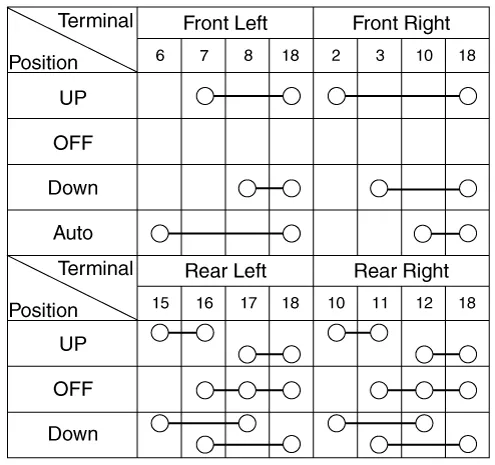

[Front Safety Power Window (Front Auto)]

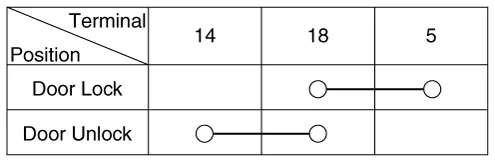

[Power Door Lock Switch Inspection]

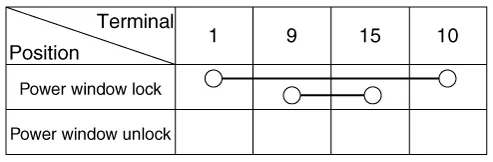

[Power Window Lock Switch Inspection]

[Assist Power Window Switch]
1.
Disconnect the negative (-) battery terminal.
2.
Remove the assist door trim.
(Refer to Body - "Front Door Trim")
3.

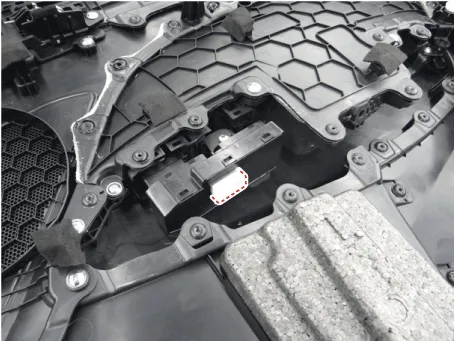

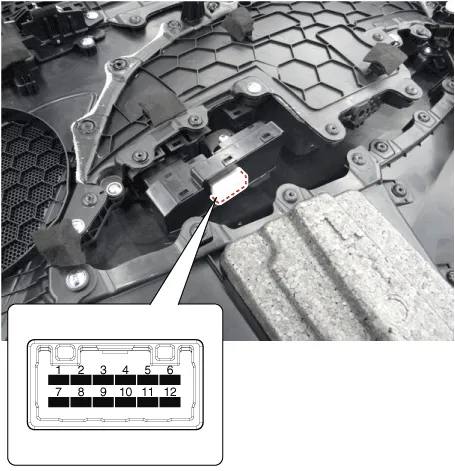

Disconnect the power mirror switch connector from the door trim.
4.

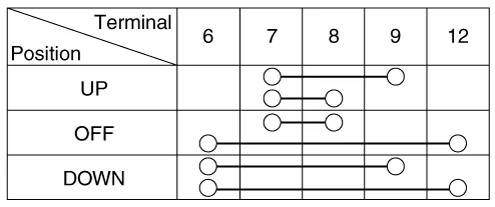

Check for continuity between the terminals in each switch position as shown below.

Rear Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Disconnect the power mirror switch connector from the door trim.

4.
Check for continuity between the terminals in each switch position as shown below.
[Rear Power Window Switch Inspection]

[Rear Sear Heater Switch Inspection]

Removal
Driver / Assist Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

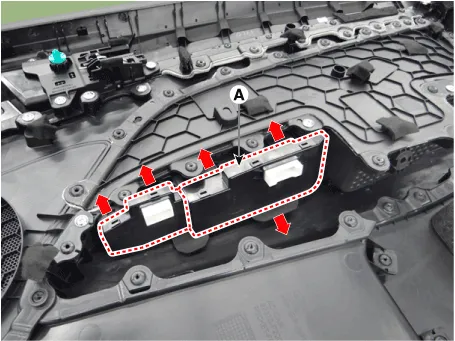

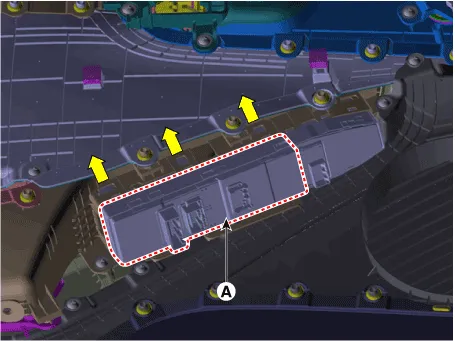

Remove the power window switch (A).

Rear Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Remove the power window switch assembly after disengaging the mounting clips.

Installation
Driver / Assist Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connect the connector.
Rear Power Window Switch
1.
Install the power window switch assembly.
2.
Install the rear power window switch.

    Circuit DiagramDriver Power Window Switch[Driver Auto down power window][Driver Safety Power Window (Driver Auto)][Driver Safety Power Window(Front Auto)][Safety Power Window (Assist Auto)][Manual Power Window]Rear Power Window Switch[Rear Power Window Switch (Manual)][Rear Power Window Switch (Manual + Seat Heater)]
