Description

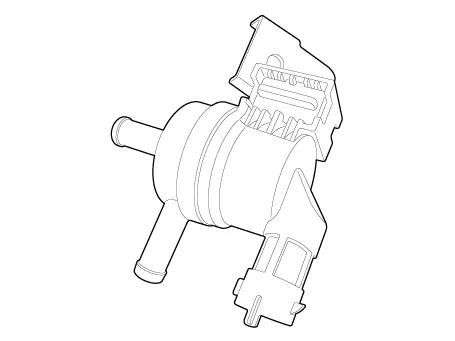

Purge Control Solenoid Valve (PCSV) is installed on the surge tank and controls the passage between the canister and the intake manifold. It is a solenoid valve and is open when the ECM grounds the valve control line. When the passage is open (PCSV ON), fuel vapor stored in the canister is transferred to the intake manifold.

    Inspection1.Turn the ignition switch OFF.2.Disconnect the injector connector.3.Measure resistance between the injector terminals 1 and 2.4.Check that the resistance is within the specification.

    Specification Item Specification Coil Resistance (Ω)22.0 - 26.0 [20°C (68°F)]
